The LTC-902 leak-measurement computer supports tests using the following methods:

• Differential pressure method
• Pressure increase method
• Flow method
• Mass fl ow method
• Dosing method
• Volume measurements

It is suitable for all types of functional leakages:

• Test times from milliseconds to minutes
• Test volumes of a few millilitres up to more than 100 litres
• Also in continuous operation of serial production

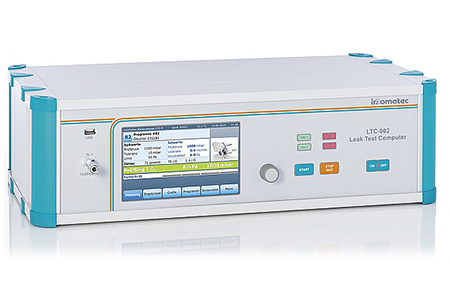

The compact LTC-902 is available in different designs and can
easily be adapted to individual or sector-specifi c requirements.

• Test times from milliseconds to minutes
• Test volumes of a few millilitres up to more than 100 litres
• Also in continuous operation of serial production

The LTC-902 facilitates testing and documentation:

• Linked testing possible
• Measuring batteries for high speed or greater fl ow can be
  integrated
• Execution of functional and adjustment testing including
  addition of further metrics

Features at a glance

• Leak-measurement computer for industrial applications

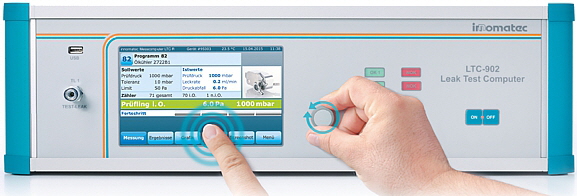

• 7" Touchscreen and one-button operation
• State-of-the-art measuring pneumatics for extremely short test times
• Full PC-functionality
• Submenu with intuitive operation
• measuring data at a glance
• Presentation of measuring curve with zoom functions
• Parameter sets for 200 programs
• Traceability of every parameter change
• Display of customer product photos for each parameter set
• External parameter management via Excel
• External parameter management and result storage via server
• Web service - LAN / WLAN - Profi bus - Profi net
• Result display as differential pressure or flow
• Automatic offset correction
• Storage of the last 1 million measuring results
• Storage of the last 50 measuring graphics
• Statistics function and measurement data management
• Screen shot function also for individual documentation
• International measurement units and languages free selectable
• Extra features: subsequent tests, copying, series leak, continuous testing as series standard
• Automatic parameter determination
• Interfaces for PLC, printer, mouse, keyboard, scanner
• 3 x USB-interfaces, HDMI interface, Ethernet-interface, RS-232 interface
• Programmable input/output allocation for PLC interface
• Small programmable machine control flow
• Devices for all pressure and flow measurements
• Multi-channel capability (several measuring circuits)

Optional

• Automatic temperature compensation
• Volume and storage pressure measurement
• Direct data exchange with leakage calibrator AF-1000
• Toolbar with variants for the measuring process
• Profi bus interface, Profi net interface
