DF-10 Leak Simulator

Use the DF-10 Leak Simulator to ensure that your leak testing system is reliable. The compact DF-10 combines simple operation with well-known reliability. The device is suitable for universal use in all industrial environments and simulates leaks in flow, independent of pressure and temperature influences.

Contact us to learn more about the DF-10 and find the optimal solution for your requirements.

DF-10 Leckagesimulator

Technical Specifications

Housing (BxHxT):
114 x 43,3 x 67,8 mm

Weight
0,4 kg

Power Supply:
AA battery or Micro-USB cable (included)

Protektion:
IP 50

Test Medium:
Luft, N2

Operating Temperature Rang:
0-50° C

Conditions:
0-95% rf, not condensing

DF-10 Models

  • DF-10/50
    Measuring Range: 0,6-50 cc/min
    Accuracy: ± 1,0 % of full scale
  • DF-10/500
    Measuring Range: 6-500 cc/min
    Accuracy: ± 1,0 % of full scale

    Other options available upon request
DF-10 Leckagesimulator

Use as a leak instrument calibrator and leak simulator

  • High accuracy and repeatability
  • Touchscreen display

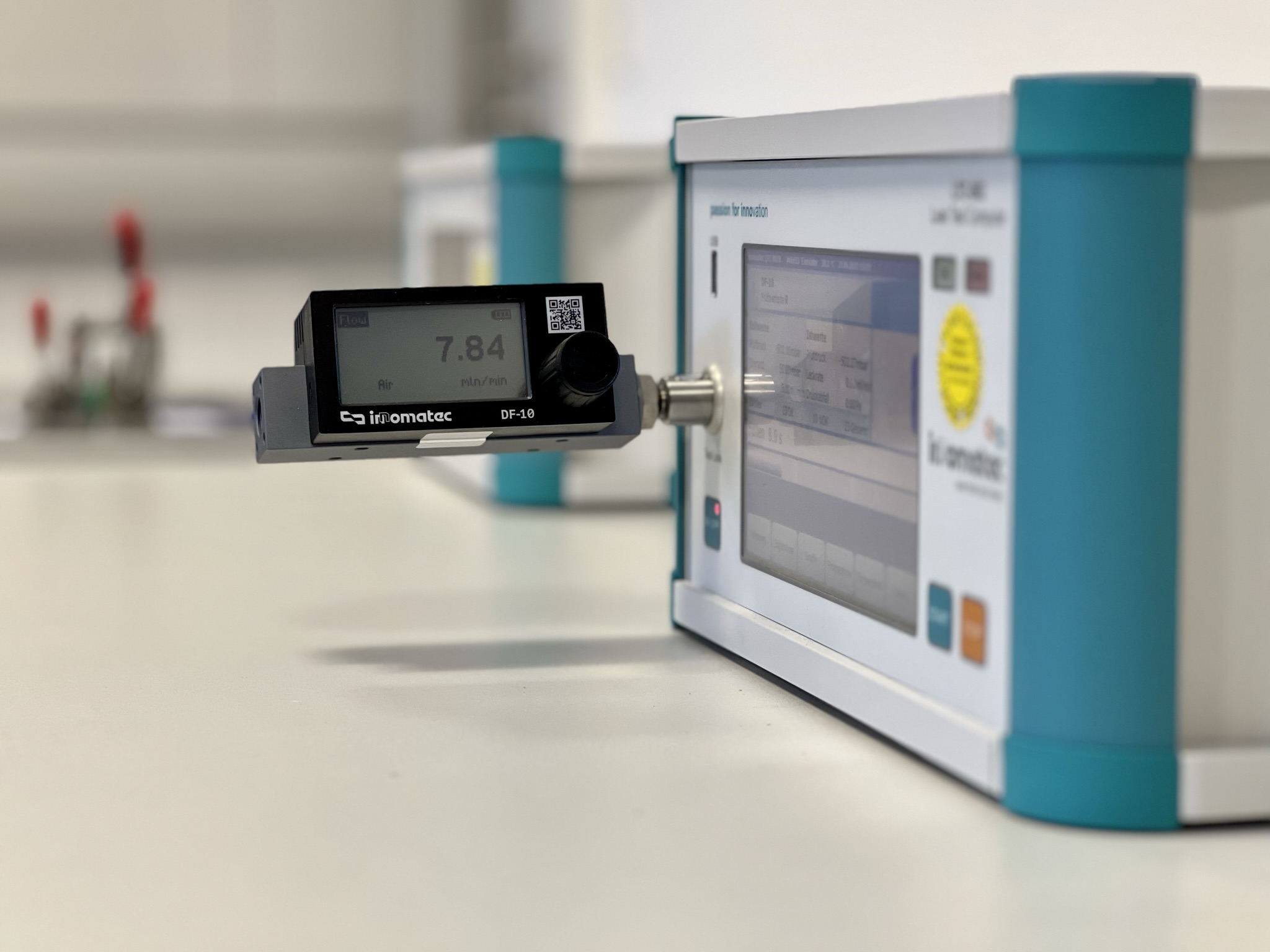

  • Plugs directly into external leak port of instrument
  • Compact design
  • Powered with standard AA battery
  • Intuitive user interface

Product Overview

  • Measures real mass flow, independent of changes in pressure or temperature

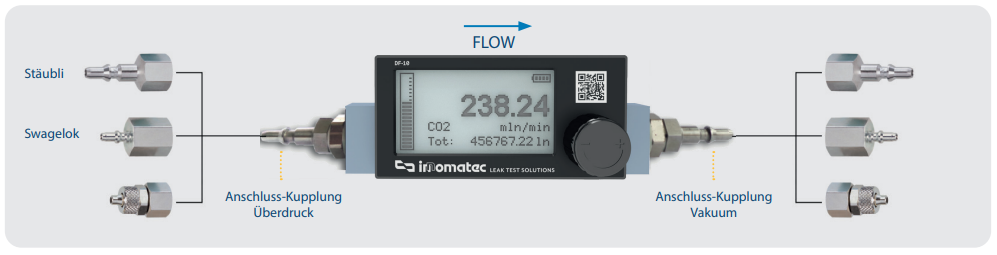

  • Plugs directly into the external leak port on all innomatec instruments and is compatible with most competitor devices (adapter or coupler requirements may vary)
  • Can be used with negative and positive pressure
  • High-speed 32 bit processor
  • Operating Pressure: -0,8 to 10 barg (-11.6 to 145 psig)
  • System Leak rate: 1 x 10-6 mbar l/s He
  • Touchscreen display: 56 x 28 mm (2.2 x 0.95 in)
  • Precision valve
  • Backlight enabled with input from external
  • Micro-USB power supply
  • Variable display orientation allows operation in any position
  • Password protection

Display

  • Icon menu screen for easy navigation
  • Automatic display adjustment
  • Wide range of measurement units for both normal flow, and standard flow, and other units
Further detailed information can be found on the corresponding data sheet.
