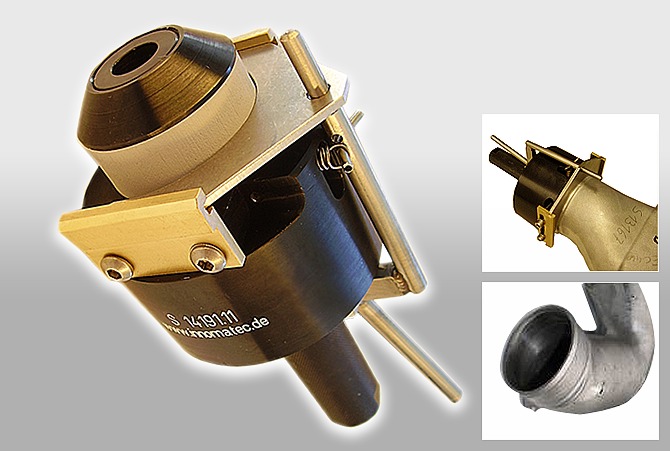

Type KI-S-E slide barrier

KI-S-E type (1) / special quick connector system

KI-S-E with slide barrier for flanged connecting pieces
The sealing is carried out pneumatically on the internal diameter of the test piece. The sliding barrier can be unlocked/locked with the lever
From vacuum to 25 bar
  • Simple operation of the sliding barrier using one hand
  • Secured safely due to the sliding barrier being applied along the circumference of the test connection piece
  • Use with connection piece with rough surface

Heat exchangers, radiators

Special designs on request.
Special rubber seals for use with food and medical applications. Temperature resistance up to 200 degrees Celsius and resistance to aggressive media.

You will find additional information in the corresponding Data sheet

Find your quick connector!

To find the perfect quick connector for your application, you can use the following checklist

Further detailed information in the data sheet / program Quick Connections (PDF)

Gladly we advise you personally.
Phone +49 / 6126 / 94 20-0
