Digiflow 2003 calibrator
"Freely" selectable for inspection of leak testing devices and simulation of leaks.

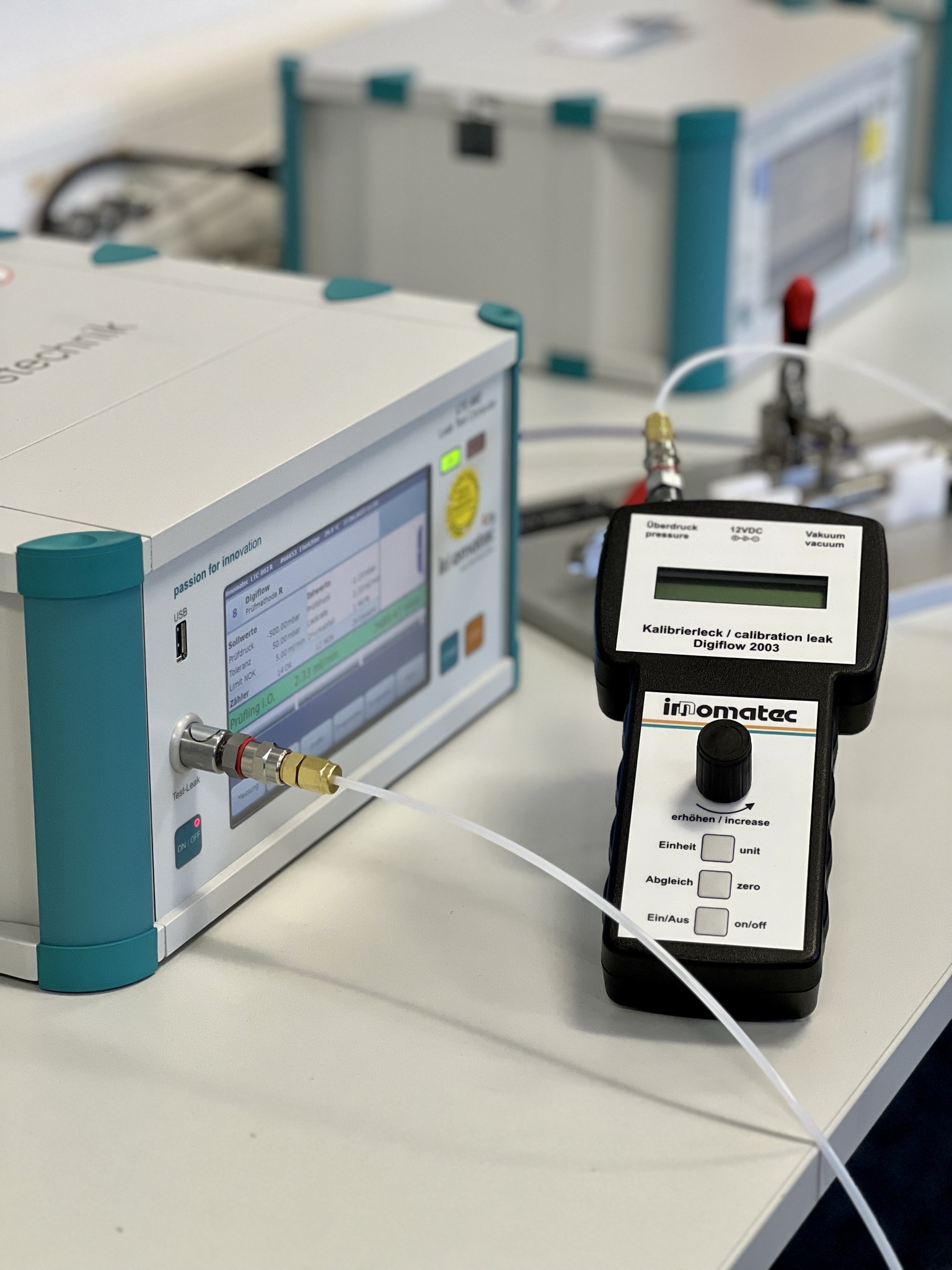

innomatec calibrator Digiflow 2003
With accessories in a convenient storage case
Technical data
Flow Measurement range:
0 ... 30,0 Nml/min (Typ 2003-30)
Flow Measurement range:
0 ... 200,0 Nml/min (Typ 2003-200)
Measurement accuracy:
< +/- 2% v.E.
Response time:
5 ms
Temperature measurement range:
- 12,0 ... + 50,0 °C
Temperature measurement range:
0,0 ... + 40,0 °C (linearised)
Measurement accuracy:
<+/-0,1°C in the linear area.
Response time:
30 ms
Testing medium:
Dry, oil-free, filtered compressed air
0 ... 30,0 Nml/min (Typ 2003-30)
Flow Measurement range:
0 ... 200,0 Nml/min (Typ 2003-200)
Measurement accuracy:
< +/- 2% v.E.
Response time:
5 ms
Temperature measurement range:
- 12,0 ... + 50,0 °C
Temperature measurement range:
0,0 ... + 40,0 °C (linearised)
Measurement accuracy:
<+/-0,1°C in the linear area.
Response time:
30 ms
Testing medium:
Dry, oil-free, filtered compressed air
Input pressure:
max. 10,0 positive pressure or – 1,0 bar vacuum
Calibration setting:
998 hpa, 22,0 °C +/- 2°C
Measuring value display:
Alphanumeric double-lined display
Pressure measurement connection:
max. 10 bar ; Swagelok B-QM2-S-2PM-ZN
Vacuum measurement connection:
max. –1,0 bar; Swagelok B-QM2-S-2PM-ZN
Ambient temperature:
- 20,0 ... + 50,0 °C
Voltage supply:
9V Block battery (approx. 60 hours of operation)
Network device connections:
12 V ; 8,4 mA
max. 10,0 positive pressure or – 1,0 bar vacuum
Calibration setting:
998 hpa, 22,0 °C +/- 2°C
Measuring value display:
Alphanumeric double-lined display
Pressure measurement connection:
max. 10 bar ; Swagelok B-QM2-S-2PM-ZN
Vacuum measurement connection:
max. –1,0 bar; Swagelok B-QM2-S-2PM-ZN
Ambient temperature:
- 20,0 ... + 50,0 °C
Voltage supply:
9V Block battery (approx. 60 hours of operation)
Network device connections:
12 V ; 8,4 mA
Dimensions:
210 mm x 110 mm x 70 mm
Weight:
570 g
Order no.:
7250 für DIGIFLOW 2003-30
7260 für DIGIFLOW 2003-200
Accessories
Storage Case:
(Standard) 395 mm x 295 mm x 106 mm
Measuring lead:
3 mm Diameter, ca. 1000 mm long,
with Swagelok B-QM2-S-2PM-ZN
and Swagelok B-QM2-B-2PM-ZN
Network device:
12 V ; 8,5 mA
Operating instructions and calibration certificate
210 mm x 110 mm x 70 mm
Weight:
570 g
Order no.:
7250 für DIGIFLOW 2003-30
7260 für DIGIFLOW 2003-200
Accessories
Storage Case:
(Standard) 395 mm x 295 mm x 106 mm
Measuring lead:
3 mm Diameter, ca. 1000 mm long,
with Swagelok B-QM2-S-2PM-ZN
and Swagelok B-QM2-B-2PM-ZN
Network device:
12 V ; 8,5 mA
Operating instructions and calibration certificate
Further detailed information can be found on the corresponding data sheet.
