Type KO Quick Connects Seal Axial Surfaces

The innomatec connec® quick connect system, type KO seals pipes, flanges and all types of frontal sealing surfaces and connects them to the desired piping system. Machined, rough and cast surfaces as well as test pieces with large tolerances are axially sealed.

The innomatec connec® quick connection system has excellent sealing properties ("helium-tight"). The service life of the sealing rubber is designed for suitability for series production. The sealing rubber can be changed very easily without tools.

The connection is available in many special versions for special applications with stroke limitation, slide lock, internal mandrel, or special seals for special environmental conditions. For special applications, the dimensions of the connection can be adapted to the task. We also offer single pieces.

Learn more about our different quick connectors

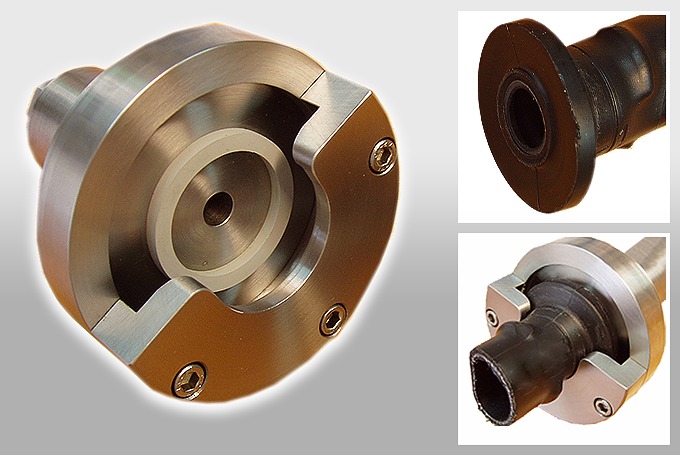

Type KO-F (1) quick connection for round flanges DN 50-DN 100

The connection is hooked manually with the counter support behind the test flange. The frontal sealing is effected by a pneumatically activated, internal piston. After releasing the control pressure, the piston is returned to its original position by a spring.

From vacuum to 50 bar

  • Stable, secure fit due to precisely fitting counter-holder.
  • The unevenness of the sealing surface is compensated by a soft seal.

Boiler construction, pipeline construction

Special designs on request. Special sealing materials for food and medical applications. Temperature resistance up to 200 degrees Celsius and resistance to aggressive media.

Type KO-F (2) - quick connection for round flanges DN 100 - DN 250

The connection is hooked manually with the counter-holder behind the test flange. The frontal sealing is effected by a pneumatically activated, internal piston. After releasing the control pressure, the piston is returned to its original position via a spring.

From vacuum to 50 bar

  • Due to the redirection of the test medium (water) in the quick connector, the contact pressure of the seal increases with increasing test pressure
  • Built-in filter to protect against contamination by test medium
  • Safety interrogation by integrated sensor

Boiler construction, pipeline construction

Special designs on request. Special sealing materials for food and medical applications. Temperature resistance up to 200 degrees Celsius and resistance to aggressive media.

Type KO-F (3) Special quick connection for corner flanges

The connection is hooked manually with the counter-holder behind the test flange. The frontal sealing is effected by a pneumatically activated, internal piston. After releasing the control pressure, the piston is returned to its original position by a spring.

From vacuum to 25 bar

  • Geometry and narrow centre distance of the two spigots require the angular design of the quick connector
  • Built-in filter to protect against contamination by test medium
  • Safety interrogation through integrated sensor

Heat exchanger, cooler

Special designs on request. Special sealing materials for food and medical applications. Temperature resistance up to 200 degrees Celsius and resistance to aggressive media.

Type KO-S quick connection with double slide lock for special flange

The quick connector is placed on the cast box and locked with both slide locks. The front cover is made on the flange surface of the test specimen. After releasing the control pressure, the piston is returned to its initial position via a spring.

From vacuum to 15 bar

  • The solid design allows a high test pressure
  • Secure hold due to geometrically adapted sliding locks
  • Safety interrogation through integrated sensor

Heat exchanger, cooler

Special designs on request. Special sealing materials for food and medical applications. Temperature resistance up to 200 degrees Celsius and resistance to aggressive media.

Type KO-M-S-H connector with clamp sliding press for hose coupling (Henn coupling)

Tightness is ensured by means of an O-ring when plugging in (friction lock). The clamp of the sliding lock can be locked/unlocked via the hand lever.

From vacuum to 10 bar

  • Easy one-hand operation of the sliding lock
  • Sealing O-ring and clamp are original parts and are also used in the later installation state

Radiator connection pieces, charge air pipes with Henn couplings.

Special designs on request. Special sealing materials for food and medical applications. Temperature resistance up to 200 degrees Celsius and resistance to aggressive media.
